Product Overview

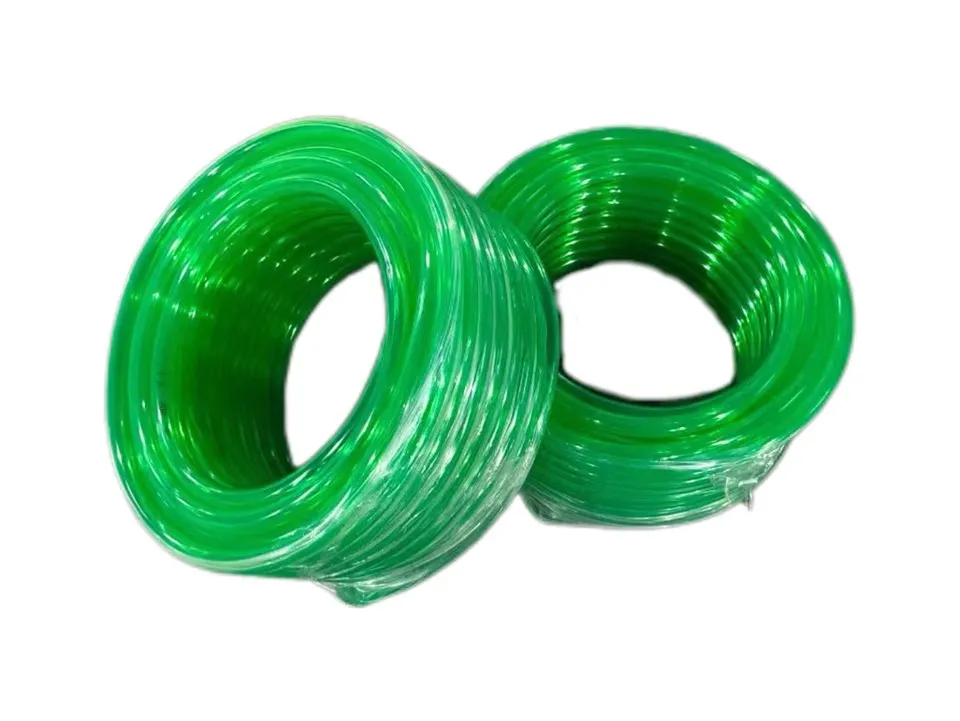

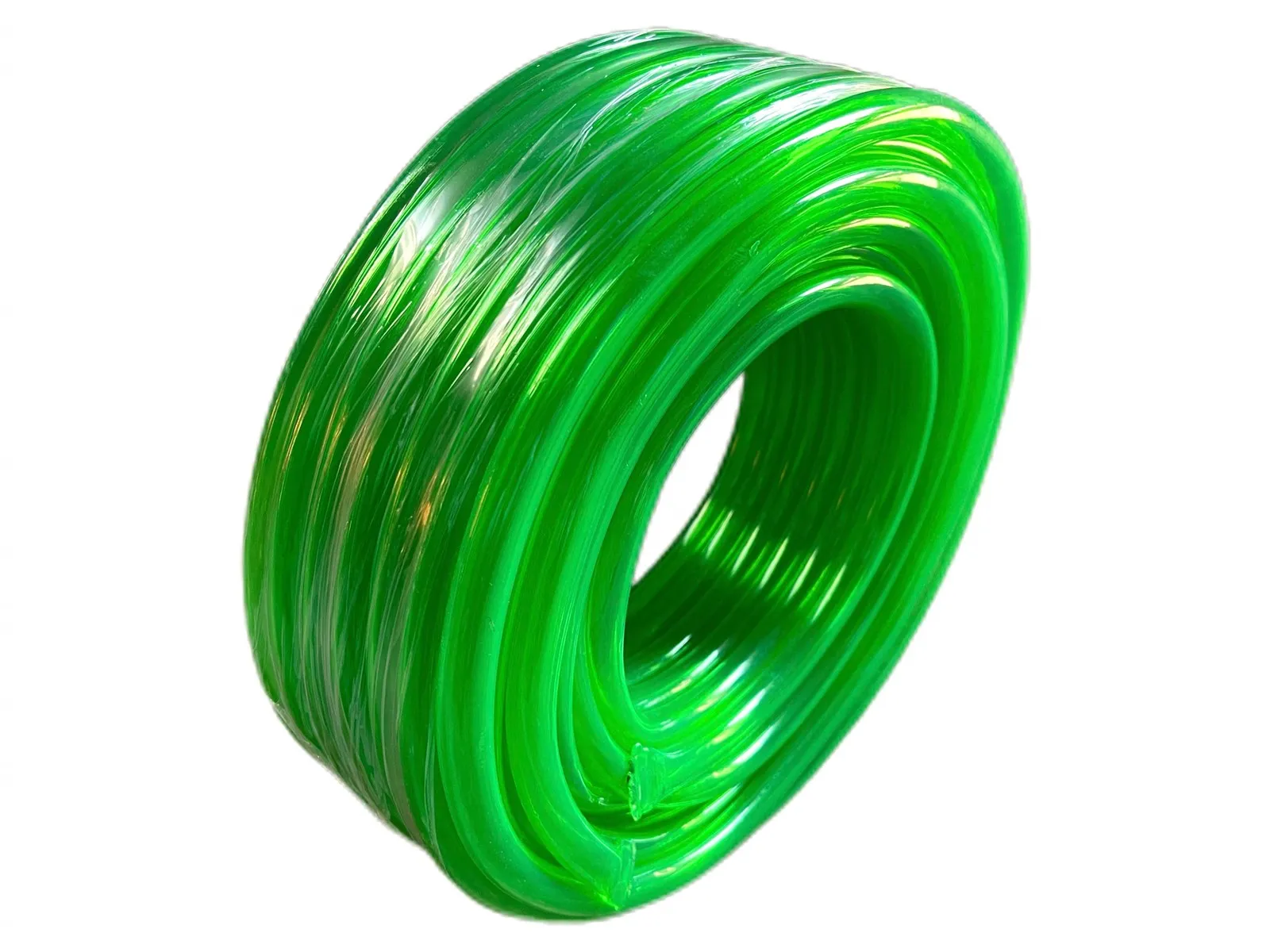

PVC Clear Plastic Tube Pipe is manufactured from 100% virgin, high-purity PVC compounds and processed on advanced, multi-stage automatic extrusion lines.
Engineered for versatile fluid transfer, factory air delivery, low-pressure drainage, and general industrial integration, this highly transparent tubing provides crystal-clear, 360-degree visual monitoring of flow rates and fluid conditions in real time.
Technical Specifications (Standard Sizes)
Engineering Note: Outer diameter (OD) and inner diameter (ID) tolerances are strictly maintained within ±0.1mm to ±0.2mm via continuous online laser-gauge calibration. Custom dimensions and heavy-wall thicknesses are available upon request.
|
Inner Diameter (ID) |
Outer Diameter (OD) |
Wall Thickness |
Working Pressure (at 23°C) |
Standard Length |
|
4 mm (1/5") |
6 mm |
1.0 mm |
8 Bar / 116 PSI |
100m / Roll |
|
6 mm (1/4") |
9 mm |
1.5 mm |
7 Bar / 101 PSI |
100m / Roll |
|
12 mm (1/2") |
16 mm |
2.0 mm |
5 Bar / 72 PSI |
50m / Roll |
|
25 mm (1") |
31 mm |
3.0 mm |
3 Bar / 43 PSI |
30m / Roll |
Engineered Advantages
- Formulated with specialized non-toxic stabilizers to resist UV degradation and significantly delay yellowing under prolonged outdoor exposure.
- Engineered with an optimized bending radius that prevents kinking and wall collapse across a stable operating temperature range of -10°C to +60°C.
- Formulated to be free from conventional phthalate plasticizers and heavy metals. Fully verified by international testing bodies to comply with RoHS 3.0 (Directive 2015/863/EU) and REACH (SVHC) standards, ensuring problem-free import clearance for global markets.
- Supports structural integrity under standard industrial demands, maintaining a reliable working pressure of 3 to 8 bar (depending on ID/OD and wall thickness).
OEM & Customization Services
As a direct manufacturer, we support fully tailored solutions to meet your precise engineering prints:
Hardness Range
Custom Shore A 50 to Shore A 95 to balance flexibility and pressure resistance.
Custom Branding
Continuous ink-jet meter marking (Brand Name, Size, Specification, Made in China).
Packaging Options
Custom carton boxes, palletized shipping, or specific coil lengths (e.g., 50ft, 100ft).
Target Applications
Industrial & Manufacturing: Factory air lines, low-pressure chemical transfer, and machinery coolant lines.
Agriculture & Irrigation: Light-duty water delivery and liquid fertilizer dispensing.
Laboratory & Medical-grade Auxiliary: Non-invasive fluid handling, drainage, and protective jacketing.
Aquarium & Food Service: Water pumps, fish tanks, and low-pressure liquid dispensing (FDA food-grade variants available upon custom request).
Quality Assurance
Batch Traceability: Every production lot undergoes continuous laser-gauge diameter measurement during extrusion.
100% Raw Material Audit: We implement a strict incoming inspection protocol on all virgin PVC resins to guarantee zero contamination, ensuring optimal transparency and tensile strength from the very start of the melt-process.
Chemical Compatibility & Limitations
Highly Compatible: Water, compressed air, alcohols, diluted acids, and alkaline solutions.
Not Recommended For: Aromatic hydrocarbons, strong solvents (e.g., acetone, ketones), or continuous transfer of high-concentration petroleum products. (Please consult our engineering team if your application involves specialized chemical transfer).
FAQ
Q: What is your standard MOQ, and do you accept trial orders?
A: Our standard MOQ is 1,000 meters per size. However, we welcome flexible trial orders for initial quality evaluations. We understand that establishing trust takes time, and we are ready to support your market testing.
Q: What certifications do your clear PVC tubes hold for import compliance?
A: Our products are verified by third-party laboratories and fully compliant with RoHS, REACH, and relevant international chemical safety standards.
Q: What is your standard production lead time for a full container load (20GP/40HQ)?
A: Supported by an annual capacity of 4,000 tons, we typically complete and prepare full container orders for shipment within 15 to 20 days.
Q: Can you provide free samples for quality and compatibility testing?
A: Yes, we provide complimentary sample rolls (1 to 5 meters) for your technical evaluation; you only cover the shipping cost.
Q: How do you handle quality discrepancies if they arise after delivery?
A: Each shipping batch is traceable by production lot. In the rare event of a dimensional or quality variance, our technical team will review the batch records within 24 hours. We offer a full replacement or credit for any verified manufacturing defects.
